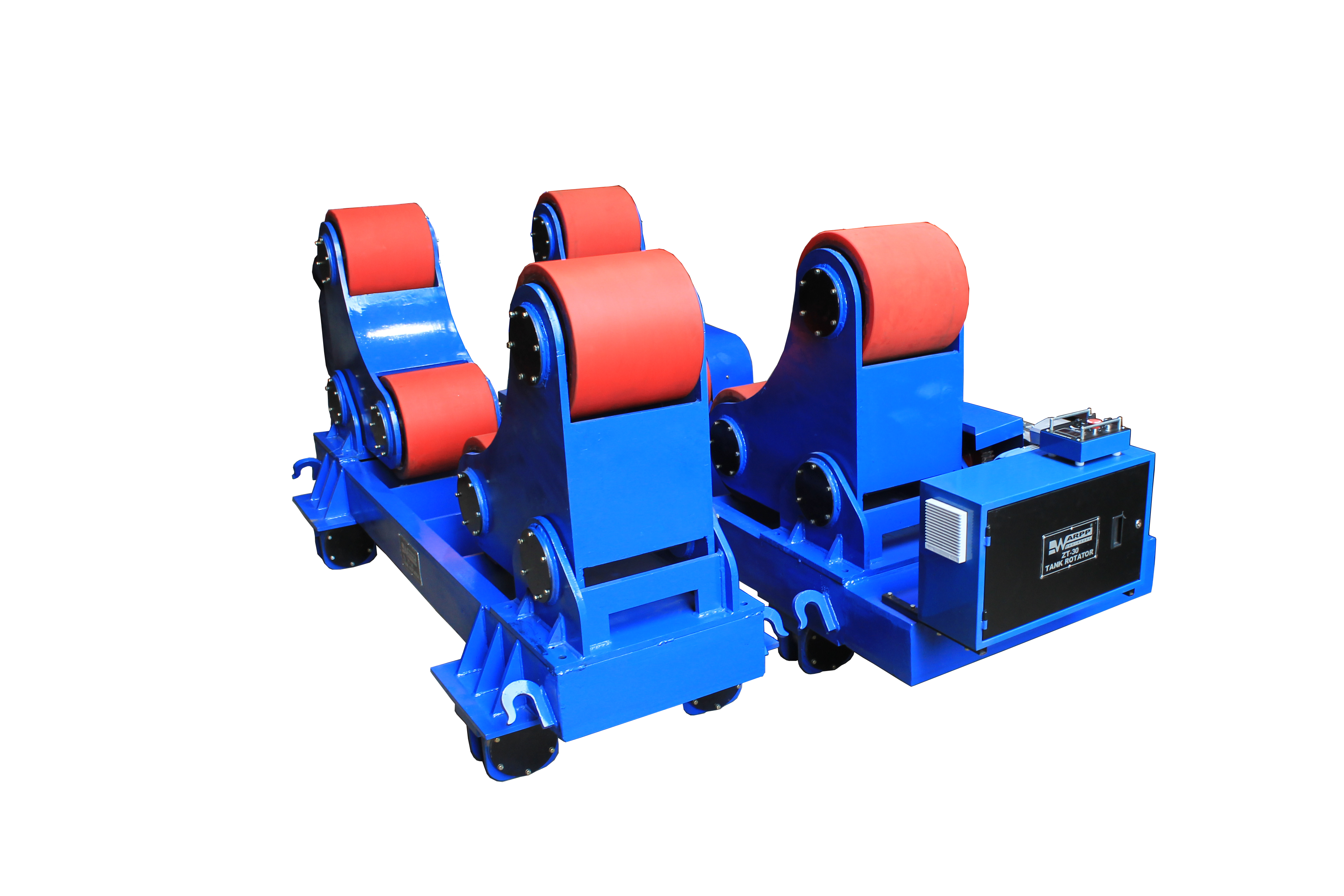

Self Aligned Tank Rotator

These rotators are designed ancl manufactured to suit need of rotating shells for circular seam welding. Precisely fabricated and machined structure along with perfectly aligned system ensures smooth rotation of the shells. There is no need to adjust the distance between the turning rolls as they adjust as per the diameter of the shell.

Features :

• Strudy base
• PU lining on the roller for perfect grip
• AC motor with VFD gives step less variation of speed over the entire range

Technical Specifications

Model	Load Capacity (Tons)	Wheel Dia. (mm)	Wheel Width (mm)	Work Piece Dia (mm)
ZT - 5	5	250	100	250-2300
ZT - 10	10	300	120	300-2800
IT - 20	20	300	120	500-3800
ZT - 30	30	400	150	500-3800
ZT - 50	50	400	150	600-4500
ZT - 75	75	500	200	800-5000
No. of Wheels - 8
Wheel Speed - 125 ~ 1000 mm/minute
Input Power - 3 Phase 380-440Volts 50 Hz Supply
Wheel Material - Cl Steel/ Polerethare + C.l. steel
